Why use Tables?

Return to FrontPage version.

Many web designers will use a table to organize information around a topic with many subtopics. Tables can look similar to database lists or spreadsheets without the sorting and calculating functions. The table below is a good example of this use. This is a table that served as part of an example of a database on Marine Phyla.

Tables, however, have a much more creative side. In fact, it's a hidden side that makes webpage design much more fascinating. Take a moment to experience a virtual tour of an intermediate school in my district, and you'll see what I mean.

The images in the virtual tour are nested within a table with several rows and two columns. But, there's more.  In any web authoring application, the creator of the table can also make its borders invisible. This simple idea allows us to place images almost anywhere on a web page. Tour the Alta Sierra Elementary School and notice the table borders are invisible. Pretty dang slick, don't you think? So, how is this done?  It's very simple.  You can even place tables within other tables.  This is called nesting.

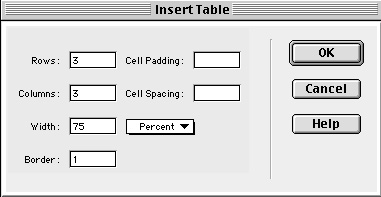

Open a new or existing page in Dreamweaver. Place the cursor on a fresh line, and center it if you like. Go to Insert =>Table ... in the menu bar. In the window that pops up, select the number of columns and rows you want, and select the border size.  Zero means no border. It's getting more and more intuitive as we go along.

The table below is a 3 by 3 invisible table. To give you a frame of reference (no pun intended), I inserted a table with a border in the middle cell and placed the "Insert Table" window inside it. I made the outer table (the invisible one) 85% of the screen size by clicking in the Width box to the left of the "Percent" pull-down menu in the "Insert Table" window.  I replaced the 75 with 85 to indicate that I want this table to be 85% of any screen on which it appears. I also added an anchor link to the top of the page (click on the blue arrow) and a link to the iMET Home just so you realize that tables can have links in them. Pretty powerful stuff!

You can edit tables, too.  You change the size of table or a row or column by moving the cursor slowly over the bottom, left or right border of the cell, row or column.  Click and drag when you see the double arrow appear over the border. To select a row or column, move the cursor slowly to the top or left border of the entire table. When you see the single arrow, just click.  You will notice that the row or column is selected and the Properties Palette at the bottom of your screen changes to reveal some formatting options. If you don't see the Properties Palette, go to "Window" in the menu bar and select "Properties".  You can also place your cursor within the table you want to modify, and go to Modify => Table and select from many options.

These options allow you to justify your row or column vertically, split cells, delete and even fill a row or column with another background color.

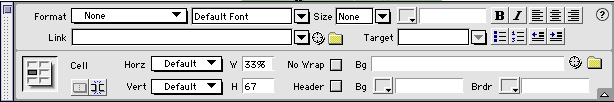

To select an individual cell in a table, simply click inside the cell, or you can also select the text or image in the cell. Once selected, a row, column or cell (or the whole table) may formatted to suit your needs. The image above shows the Property Palette for a selected cell within the table above. You can see by the image below that a cell is selected. The image below is part of the Properties Palette above.

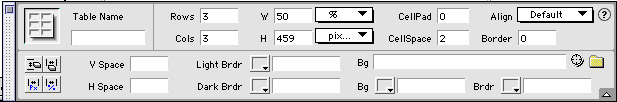

It's important to realize that when selecting a row, column, cell or table, the Properties Palette changes slightly to reflect what you have selected. Below is an illustration that shows the slight variation in the Properties Palette when an entire table is selected.

Use tables to your advantage in creating web pages that have visual appeal.  For an excellent overview of design principles in screen design, read The Non-Designer's Web Book, Chapter 6, pages 104 - 124.
