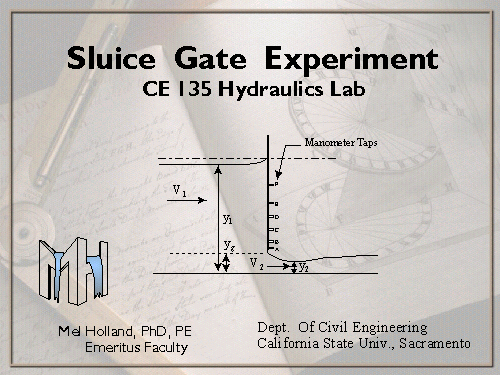

Sluice Gate Experiment

Slide 1 of 22

 First slide Previous slide Next slide Last slide Index page

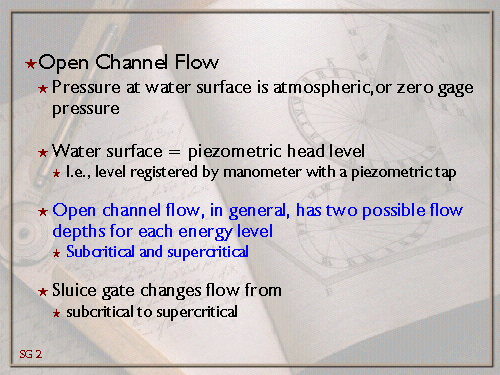

Slide 2

Slide 2 of 22

 First slide Previous slide Next slide Last slide Index page

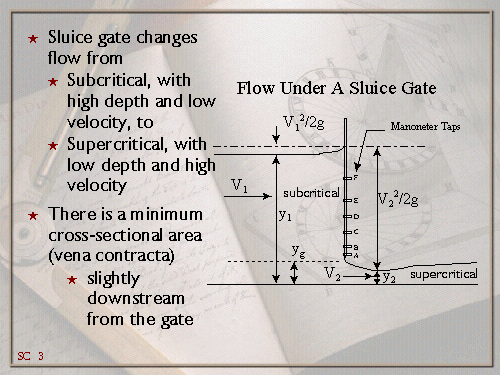

Slide 3

Slide 3 of 22

 First slide Previous slide Next slide Last slide Index page

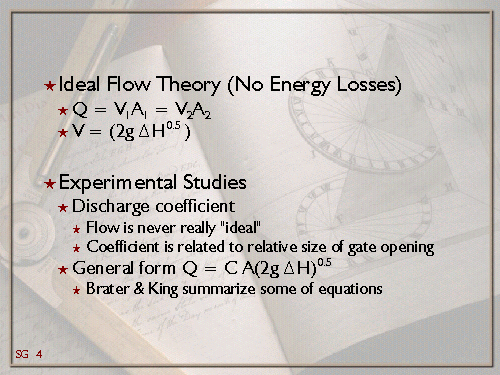

Slide 4

Slide 4 of 22

 First slide Previous slide Next slide Last slide Index page

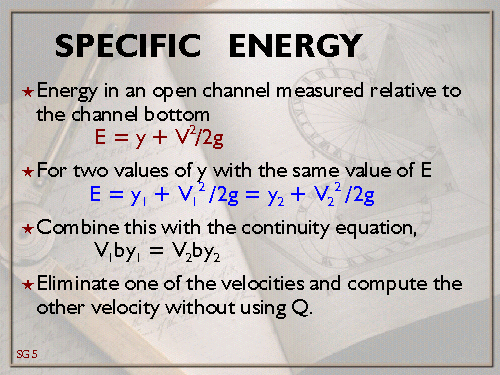

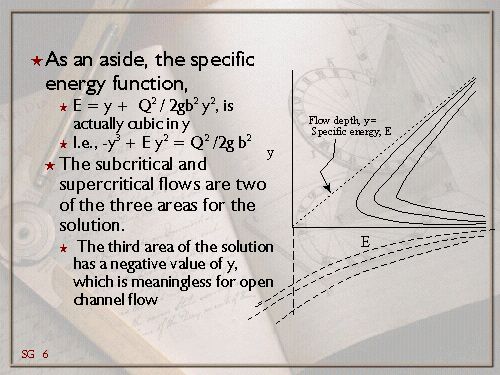

SPECIFIC ENERGY

Slide 5 of 22

 First slide Previous slide Next slide Last slide Index page

Slide 6

Slide 6 of 22

 First slide Previous slide Next slide Last slide Index page

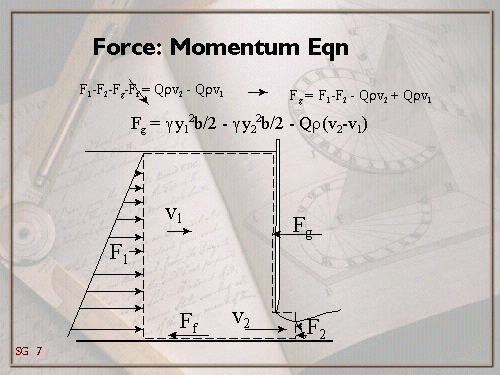

Force: Momentum Eqn

Slide 7 of 22

 First slide Previous slide Next slide Last slide Index page

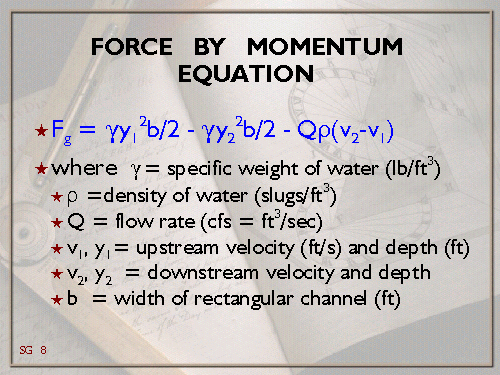

FORCE BY MOMENTUM EQUATION

Slide 8 of 22

 First slide Previous slide Next slide Last slide Index page

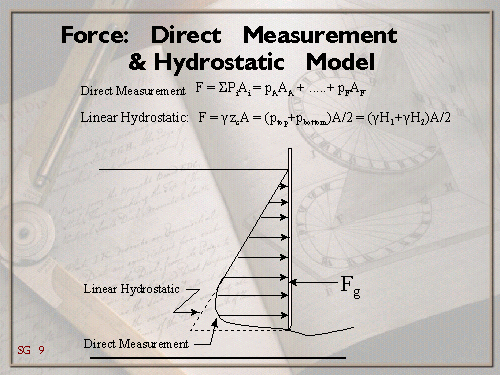

Force: Direct Measurement & Hydrostatic Model

Slide 9 of 22

 First slide Previous slide Next slide Last slide Index page

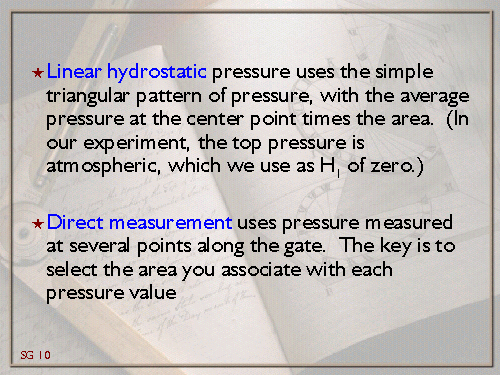

Slide 10

Slide 10 of 22

 First slide Previous slide Next slide Last slide Index page

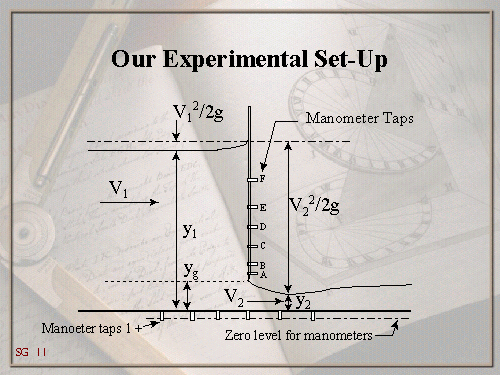

Our Experimental Set-Up

Slide 11 of 22

 First slide Previous slide Next slide Last slide Index page

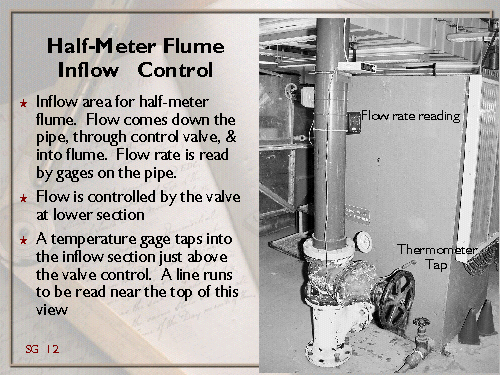

Half-Meter Flume Inflow Control

Slide 12 of 22

 First slide Previous slide Next slide Last slide Index page

Sluice Gate

Slide 13 of 22

 First slide Previous slide Next slide Last slide Index page

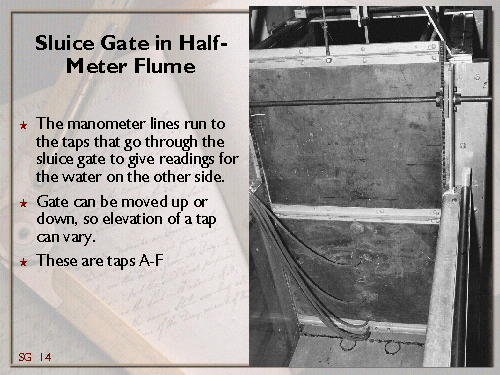

Sluice Gate in Half-Meter Flume

Slide 14 of 22

 First slide Previous slide Next slide Last slide Index page

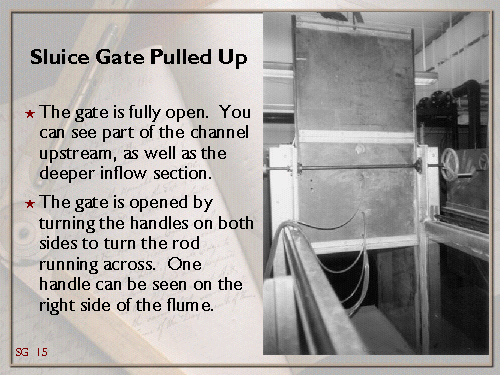

Sluice Gate Pulled Up

Slide 15 of 22

 First slide Previous slide Next slide Last slide Index page

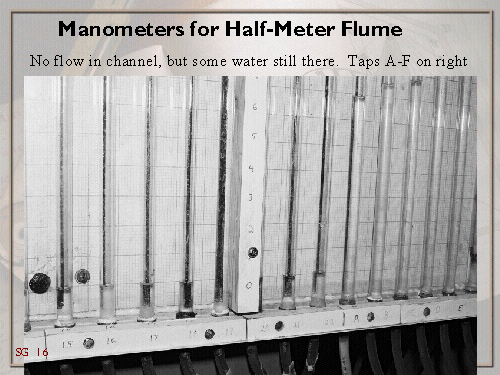

Manometers for Half-Meter Flume

Slide 16 of 22

 First slide Previous slide Next slide Last slide Index page

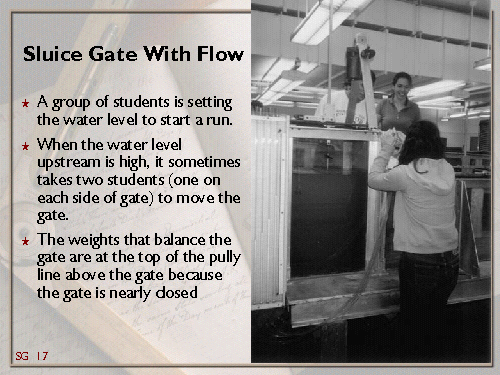

Sluice Gate With Flow

Slide 17 of 22

 First slide Previous slide Next slide Last slide Index page

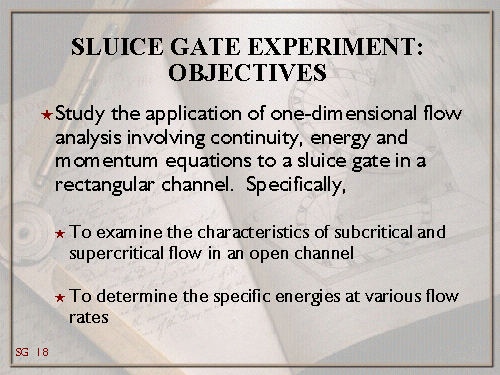

SLUICE GATE EXPERIMENT:

Slide 18 of 22

 First slide Previous slide Next slide Last slide Index page

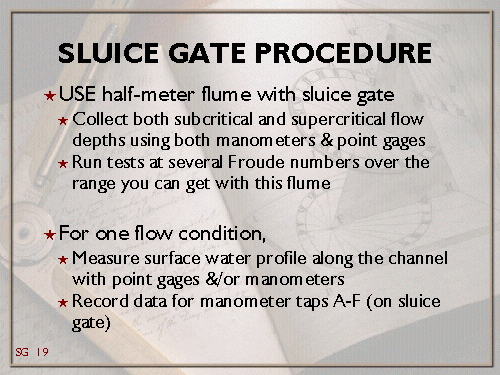

SLUICE GATE PROCEDURE

Slide 19 of 22

 First slide Previous slide Next slide Last slide Index page

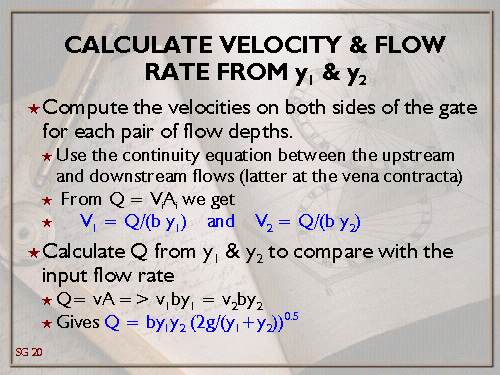

CALCULATE VELOCITY & FLOW RATE FROM y1 & y2

Slide 20 of 22

 First slide Previous slide Next slide Last slide Index page

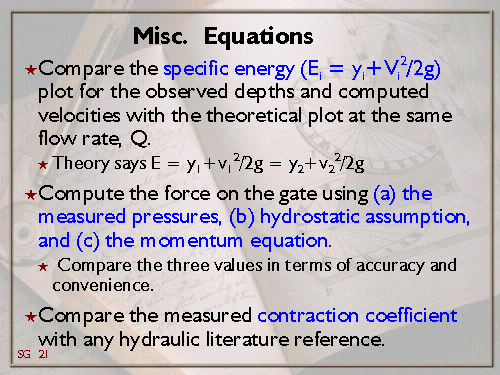

Misc. Equations

Slide 21 of 22

 First slide Previous slide Next slide Last slide Index page

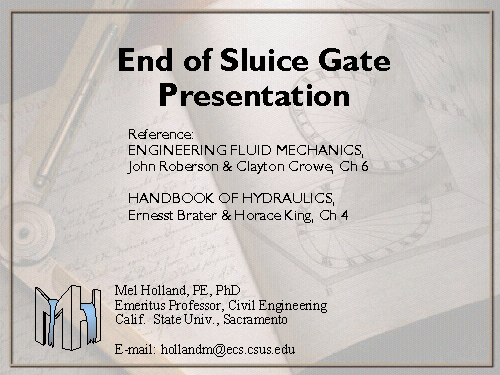

End of Sluice Gate Presentation

Slide 22 of 22

 First slide Previous slide Next slide Last slide Index page
