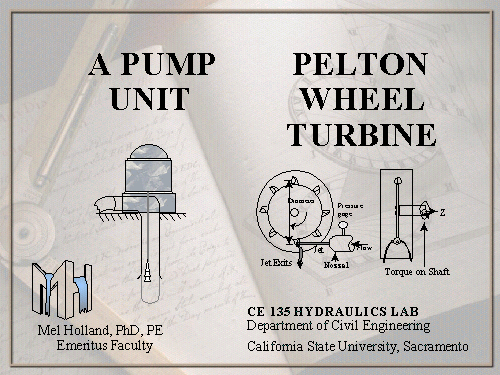

PUMPS & TURBINES -- FLIP-SIDES OF HYDRAULIC MACHINES | |
Slide 1 of 23 |
BASIC CONCEPTS OF HYDRAULIC MACHINES | |
Slide 2 of 23 |

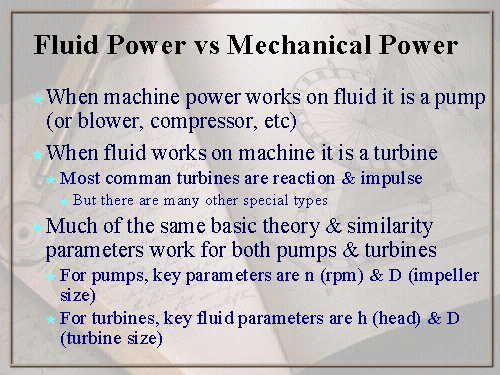

Same Theory For Pumps & Turbines | |
Slide 3 of 23 |

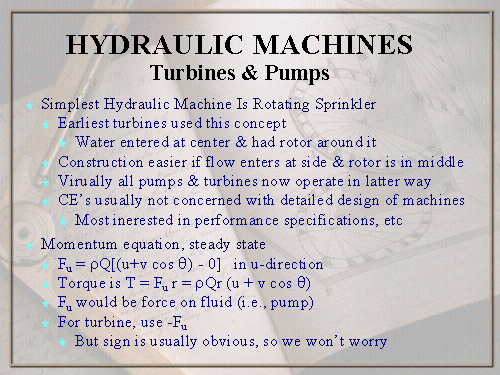

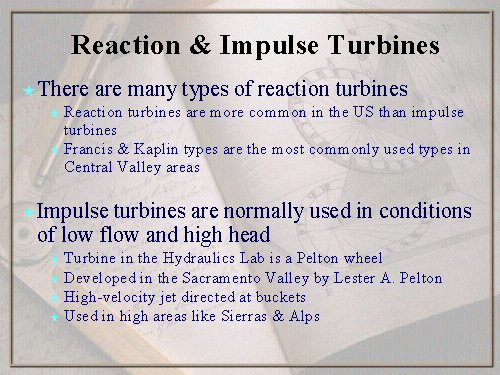

Turbines: Reaction & Impulse Types | |
Slide 4 of 23 |

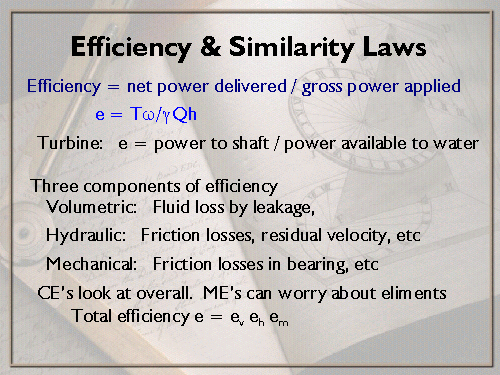

Efficiency: Power Out vs Power In | |
Slide 5 of 23 |

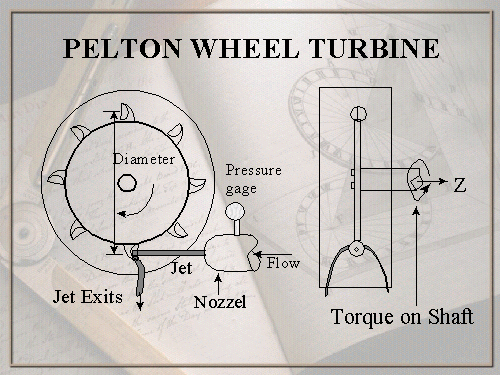

DIAGRAM OF PELTON WHEEL TURBINE | |
Slide 6 of 23 |

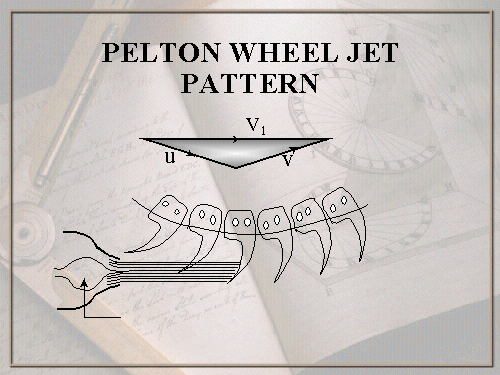

THE WATER JET STRIKES THE BUCKETS | |
Slide 7 of 23 |
A Little History: Lester A. Pelton | |
Slide 8 of 23 |
Photo of Pelton Wheel Controls | |
Slide 9 of 23 |

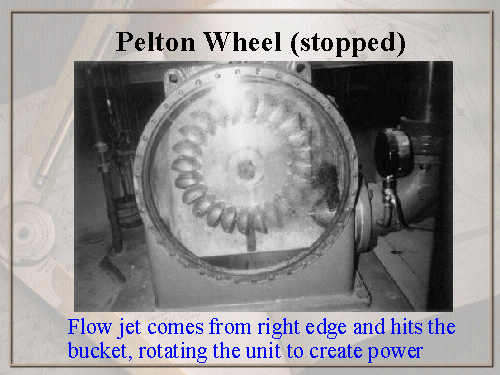

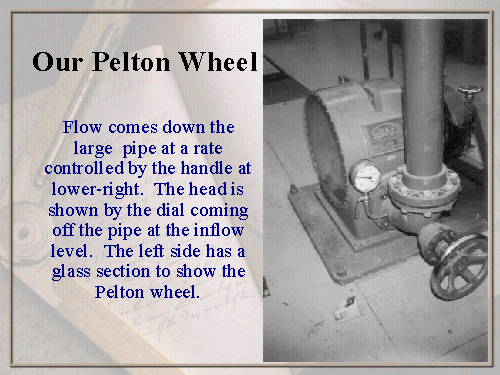

Photo of Our Pelton | |
Slide 10 of 23 |

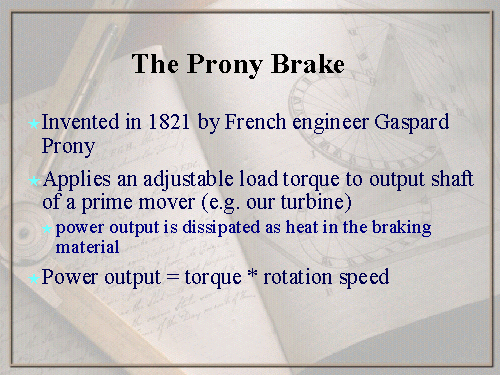

THE PRONY BRAKE | |
Slide 11 of 23 |

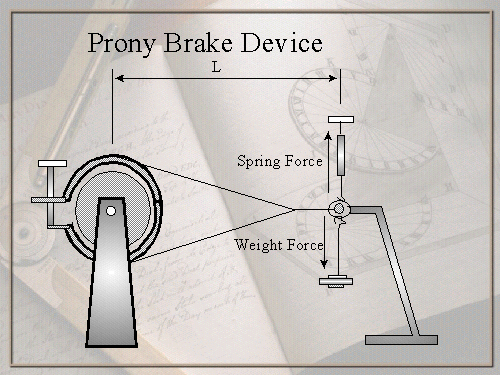

Sketch of a Prony Brake | |
Slide 12 of 23 |

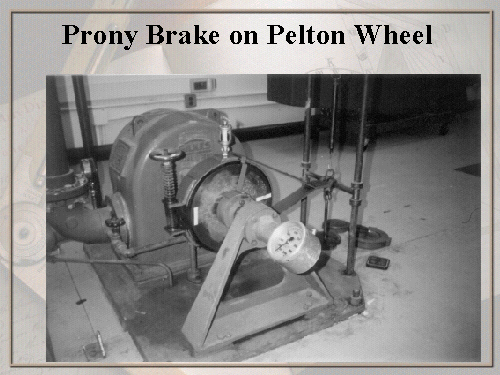

Photo of Our Prony Brake | |
Slide 13 of 23 |

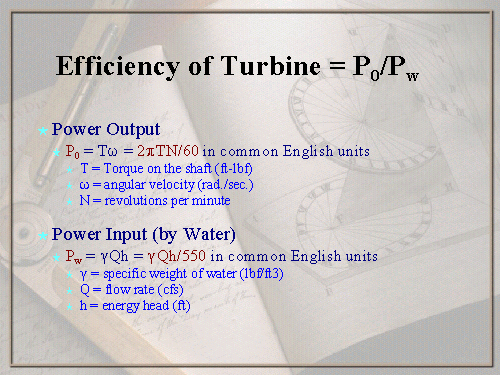

Efficiency = Power 0ut by Machine/Power in by Water | |
Slide 14 of 23 |

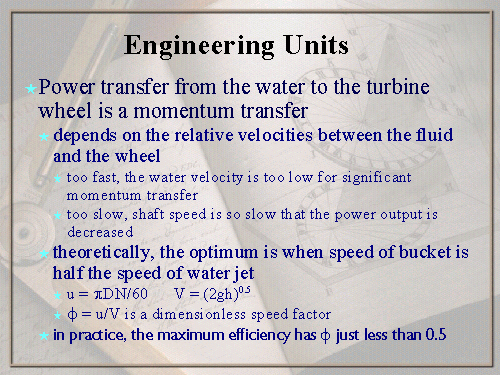

Most Efficient: Wheel Speed = Half Water Speed | |
Slide 15 of 23 |

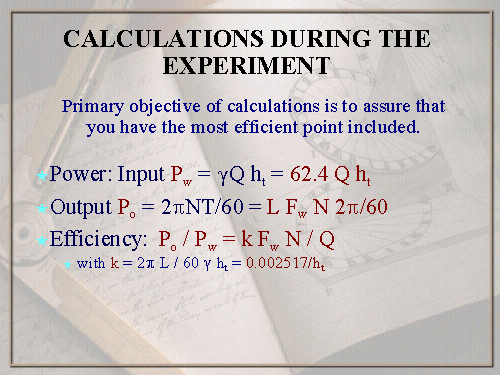

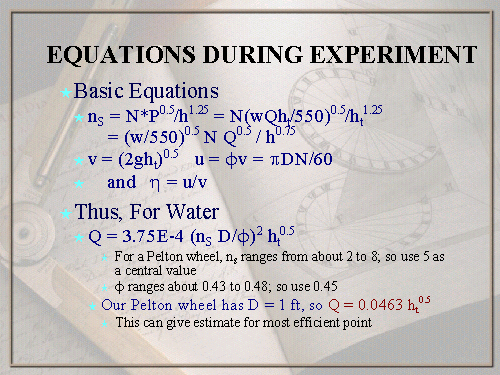

Equations You Might Use During Experiment | |
Slide 16 of 23 |

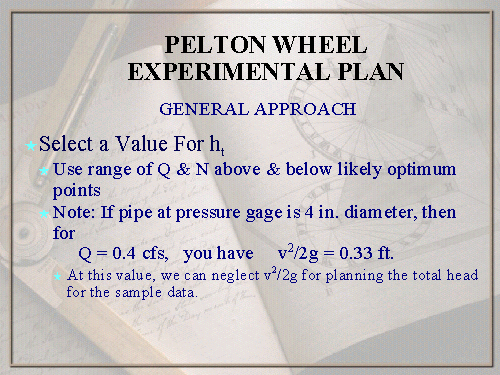

First Select Your Total Head (For All Runs) | |
Slide 17 of 23 |

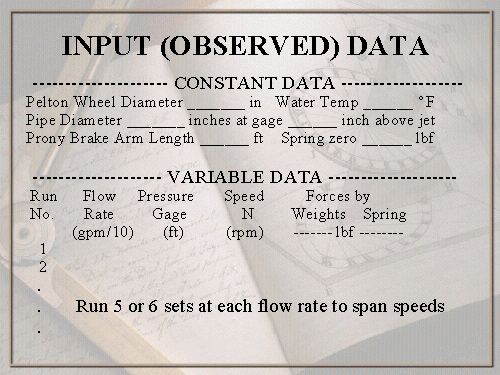

Span The Range Of RPM At Each Flow Rate | |
Slide 18 of 23 |
You Can Check Results As You Go | |
Slide 19 of 23 |

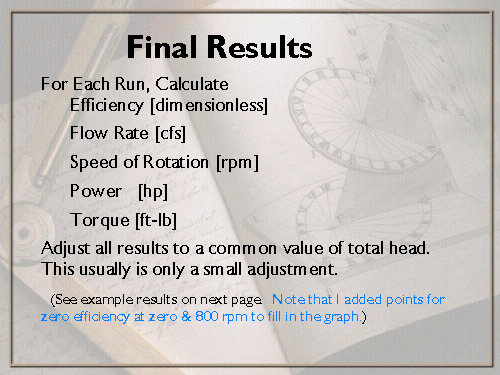

For Graphic Results A Constant Total Head Is Needed | |
Slide 20 of 23 |
I Usually Add Some Zero Efficiency Points For Graphing | |
Slide 21 of 23 |

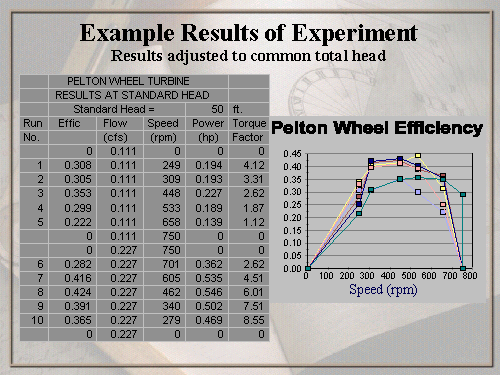

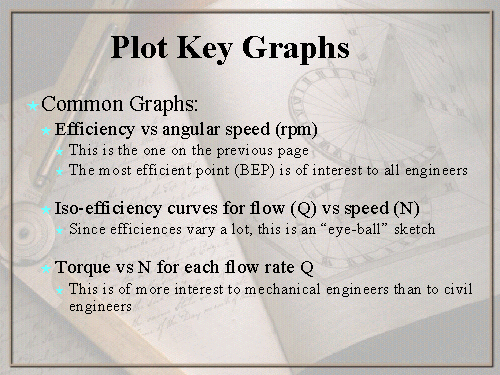

What Should An Efficiency Graph Look Like? | |
Slide 22 of 23 |

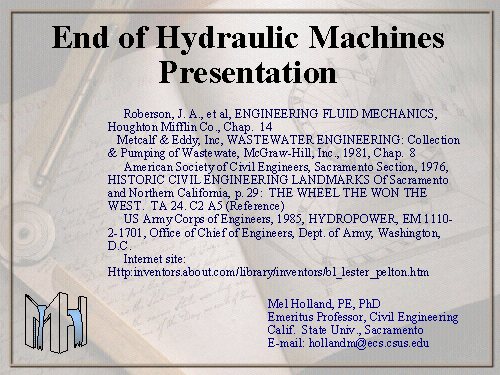

End of Pelton Wheel Experiment | |
Slide 23 of 23 |
